DidYou Know?

Detailed Buildings constructs over 20 custom made buildings each year.

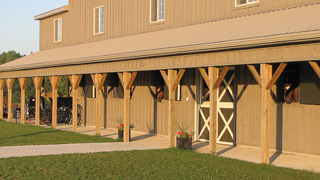

Four Stall Barn Outside

Stall Barns are custom designed depending upon the client’s needs. They can vary in size from a two stall hobby barn with a feed room, tack room and hay storage to a large 44 stall barn with 16’ aisle ways, wash racks, living quarters and hay storage. There are traditional barn designs tailored to meet the needs of various horse types ie: Standardbred, Thoroughbred, Hunter Jumper, Carriage Driving, Dressage and Heavy Horse. We are able to show clients photographs of the various barns that we have built as an aid in deciding which design to choose but most often clients have a clear idea of the basics such as the number of stalls required, barn layout, and location for the barn.

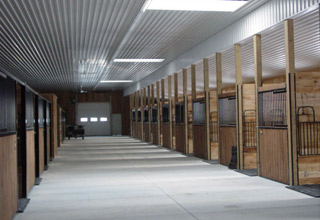

Stable Interior

Often Stall Barns are 36’ wide in order to provide stalls that are 12’ deep with a 12’ Aisle way. These barns can have a second storey for hay storage, loft living quarters, and equipment storage. The exterior is clad in coloured steel often with a contrasting trim colour, or of wood in various patterns such as board and batten or shiplap. The doors can be sliding with or without windows, trimmed with steel or wood, or they can be a Dutch door style.

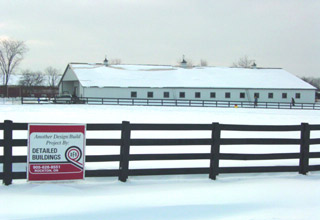

Horse Barn

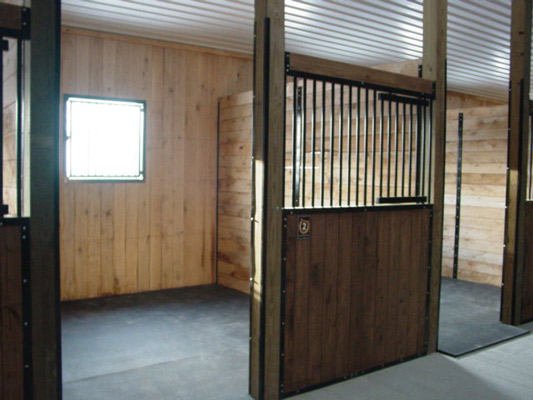

Stall sizes vary but are typically 12’ X 10’ to 12’ X 16’. Stone dust or concrete is poured into the stall floors and they are covered with ¾” rubber mats or a type of stable comfort flooring. Stall fronts can be chosen from an array of standard available systems, many of which are made in Canada. The client is offered many choices: door style: sliding or hinged, frame can be painted (choice of colours) or galvanized; feed doors and removable V doors are also available. Stall fronts can also be completely custom designed and built. Stalls are made of Rough Cut Oak, Tongue and Groove Oak or Spruce Lumber. The walls can be stained or left natural. Stall windows come in various designs with grills and yokes and can be fixed or hinged.

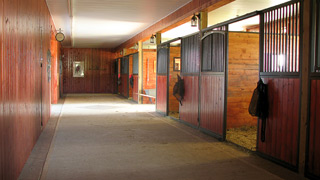

Four Stall Barn Inside

Aisle ways can be made of plain concrete, coloured and stamped concrete, interlocking stone or a combination. Wash stalls are usually lined with white Puck board plastic panels for easy cleaning. We can supply and install all accessories needed for Wash Stalls such as plumbing fixtures, hoses, brush holders, drainage grate in floor. Tack rooms can be lined in wood and equipped with saddle racks or left empty for the client to complete. The barn ceiling can be finished with steel or vinyl. Lighting fixtures, fans, ventilation systems, heat lamp units are available options.

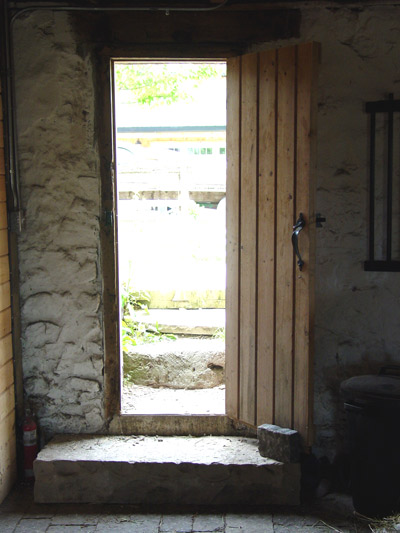

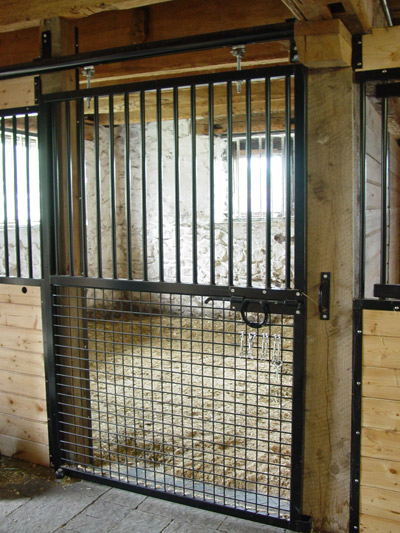

Detailed Buildings Ltd. often renovates existing old barns and transforms them into charming stall barns. Our crews can raise ceilings, hammer out and remove old concrete structures, bolster original beams, white wash walls and install custom stalls and aisle ways in order to modernize the original barn but all the while maintaining its character. Decorative exterior features such as porches, a two colour siding and trim combination, lighting, cupolas and weathervanes add a personalized touch to make each barn unique.

Finally, we try to think of every detail in order to make the stall barn functional and attractive. We work with a professional landscape design associate who can provide expert landscaping design and installation of surrounding walkways, trees and gardens, ponds, patios and courtyards.

We can build a “turn key” stall barn so that it looks like it has been there for ages and all the client has to do is move in the horses!
